Palo Alto

The CrowdSec Palo Alto integration connects CrowdSec's hosted blocklist endpoint to your Palo Alto firewall.
Palo Alto calls this feature External Dynamic Lists (EDL), which allow you to import and automatically update blocklists from external sources.

Ensure your Palo Alto device supports External Dynamic Lists (EDL).
The vendor documentation is available in the References section below.

Step 1 — Create the integration in the CrowdSec Console​

In the Integrations page, click Connect under the Palo Alto card.

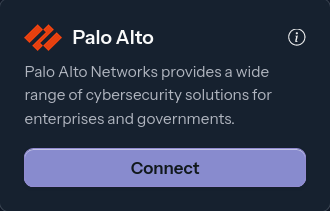

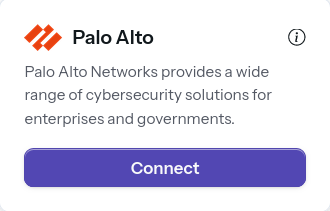

Palo Alto Integration CardPalo Alto Integration Card

Name the integration (must be unique to your account), then click Create.

Palo Alto Integration Creation ScreenPalo Alto Integration Creation Screen

The credentials shown next are displayed only once. Copy them before closing this screen.

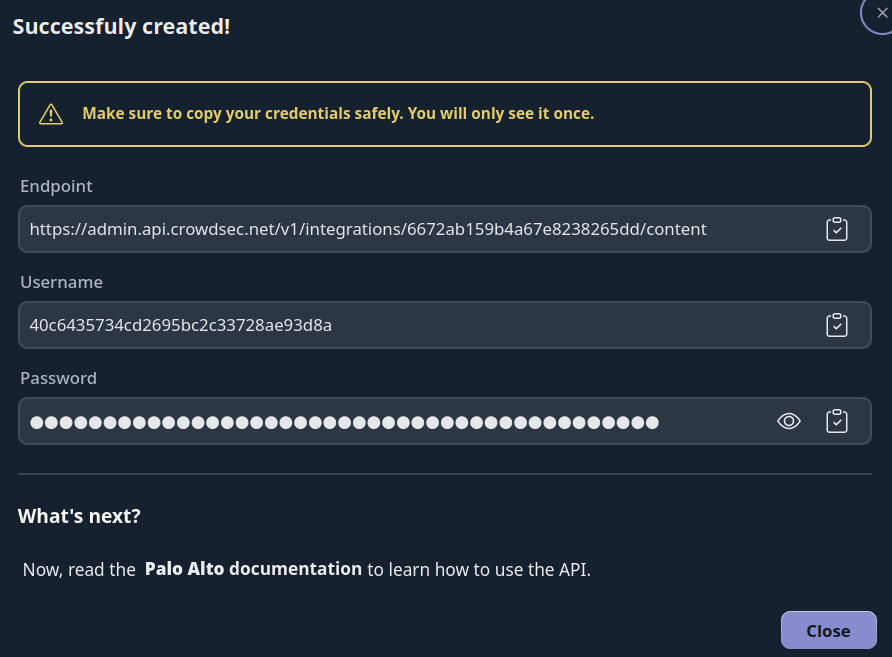

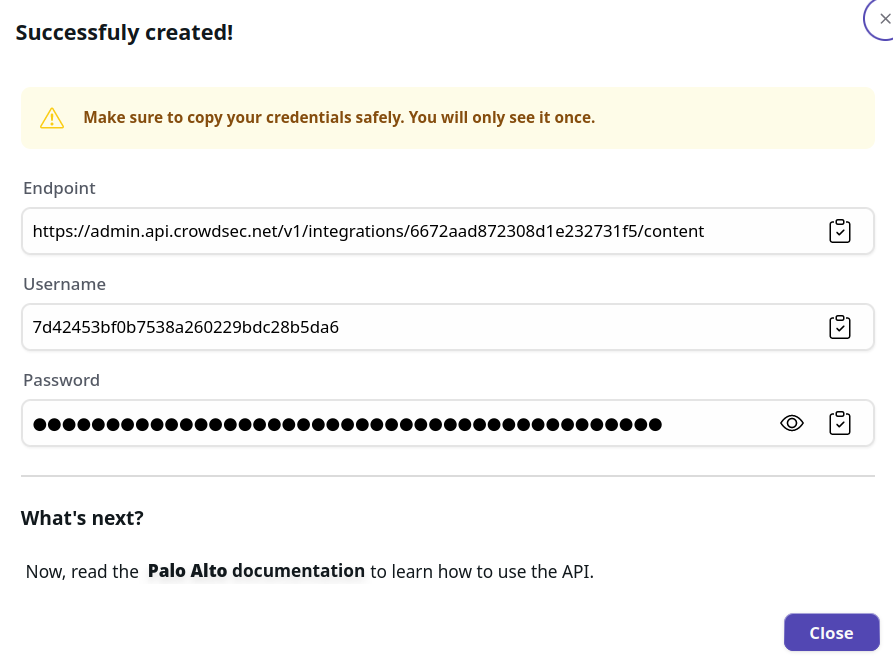

Palo Alto Integration Credentials ScreenPalo Alto Integration Credentials Screen

You now have an HTTPS endpoint and Basic Auth credentials to configure on your Palo Alto device.

Step 2 — Configure Palo Alto​

Create an External Dynamic List​

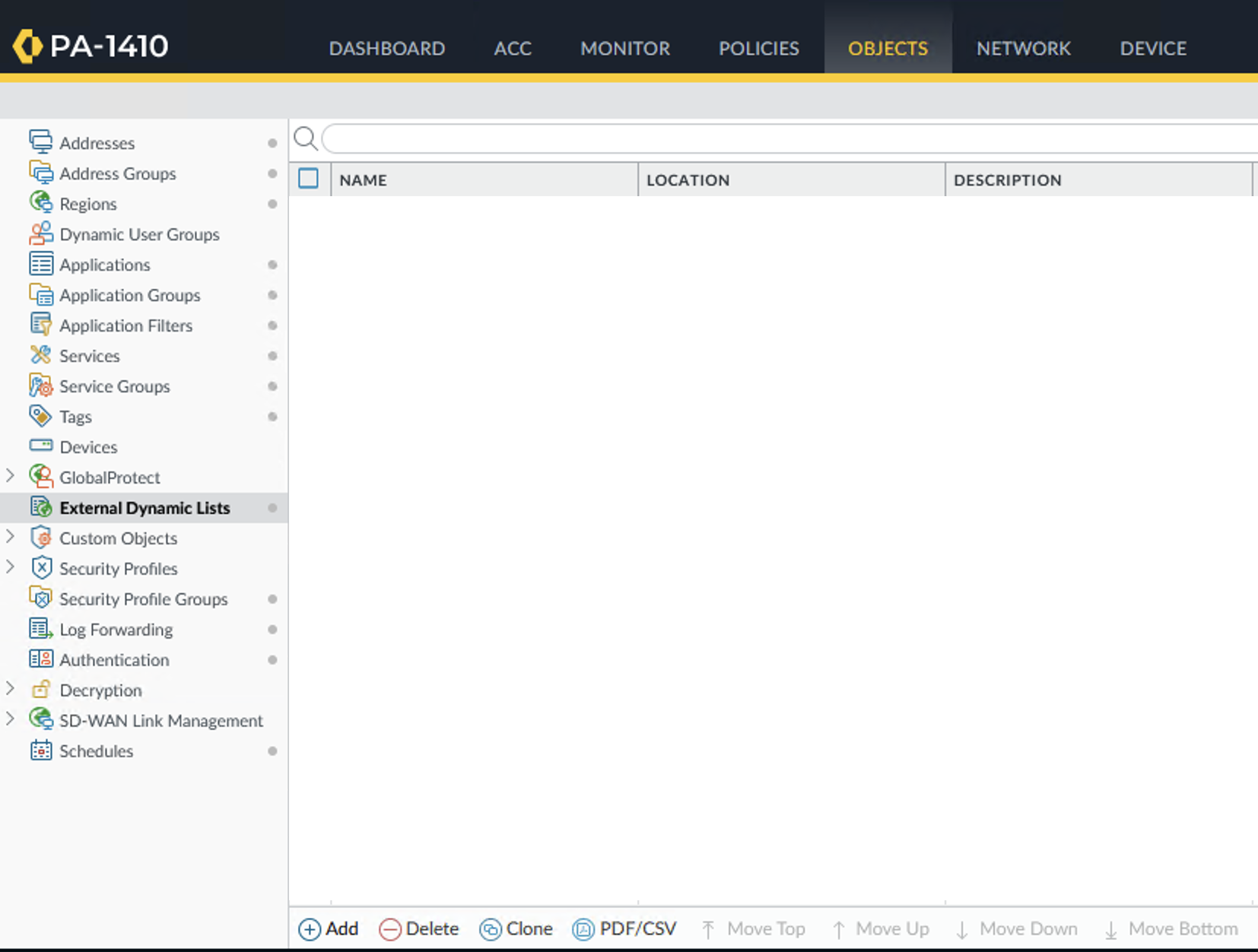

Go to Objects > External Dynamic Lists > Add.

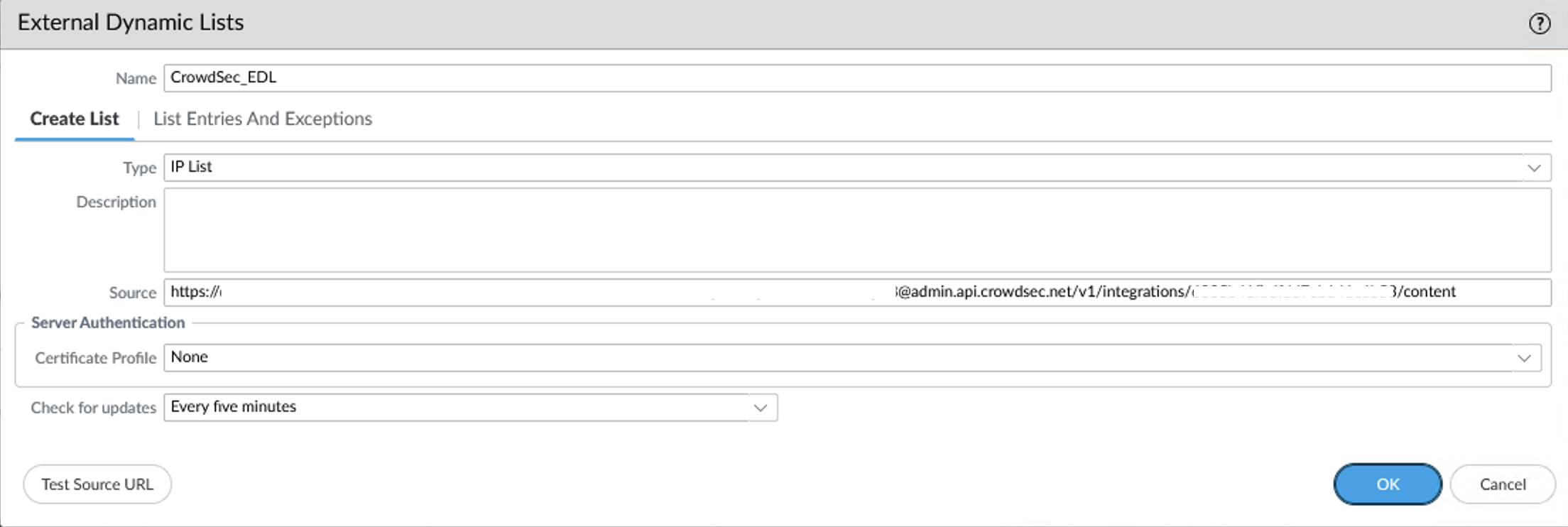

Embed the credentials in the URL using Basic Auth:

https://<username>:<password>@admin.api.crowdsec.net/v1/integrations/<integration_id>/content

Set your desired update frequency.

Create a security policy​

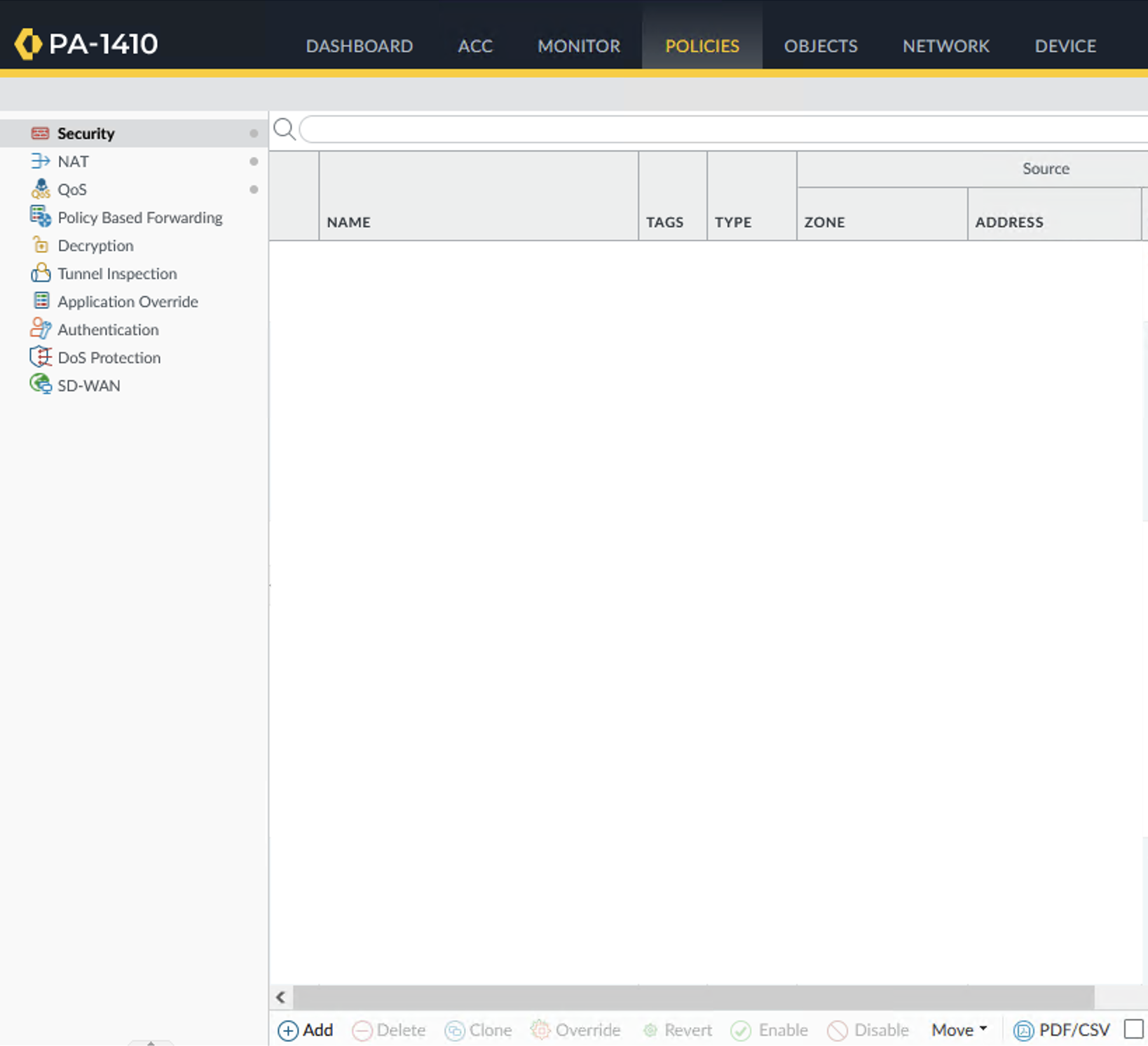

Go to Policies > Security > Add.

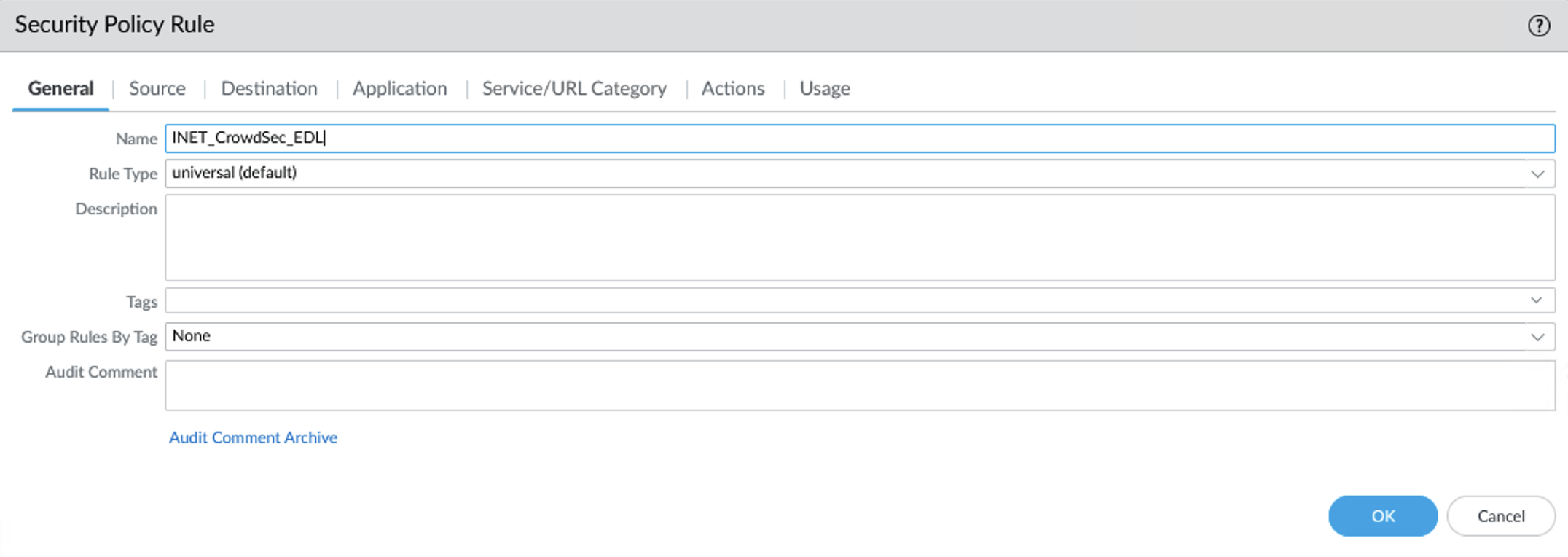

In the General tab, add the policy name and description.

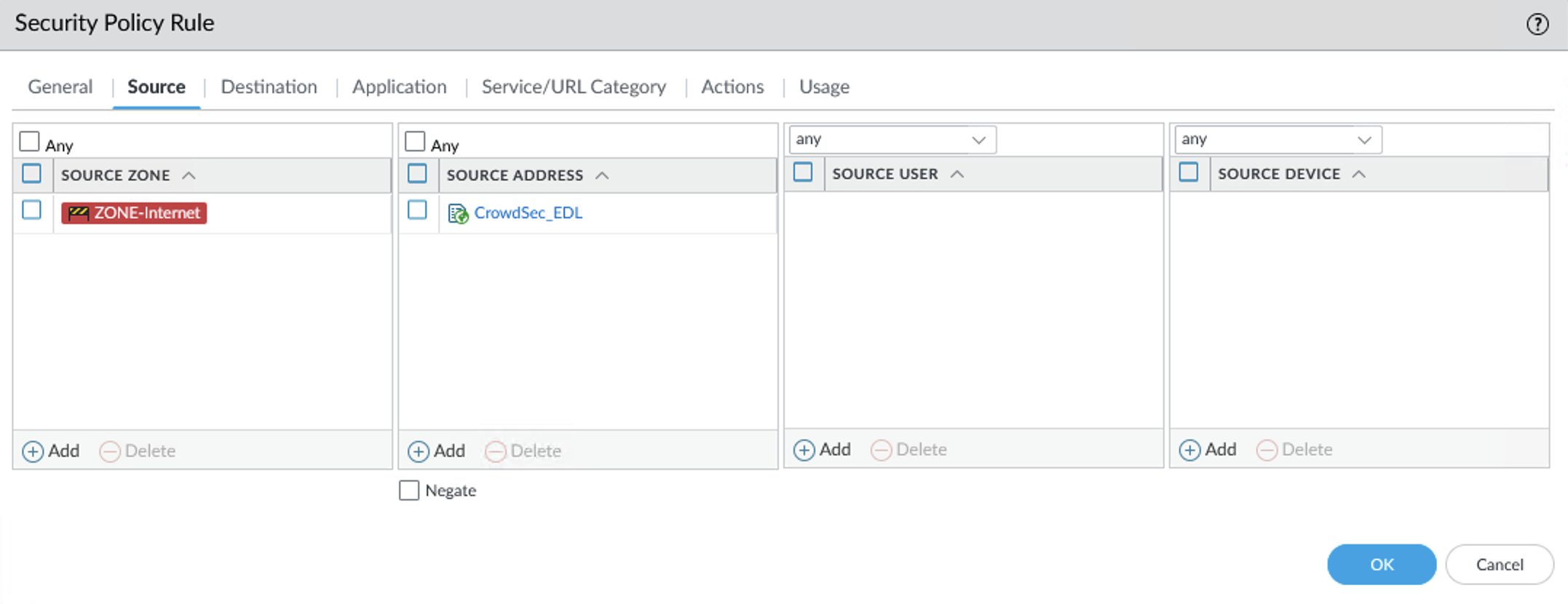

In the Source tab, select your source zone and the External Dynamic List as the source address.

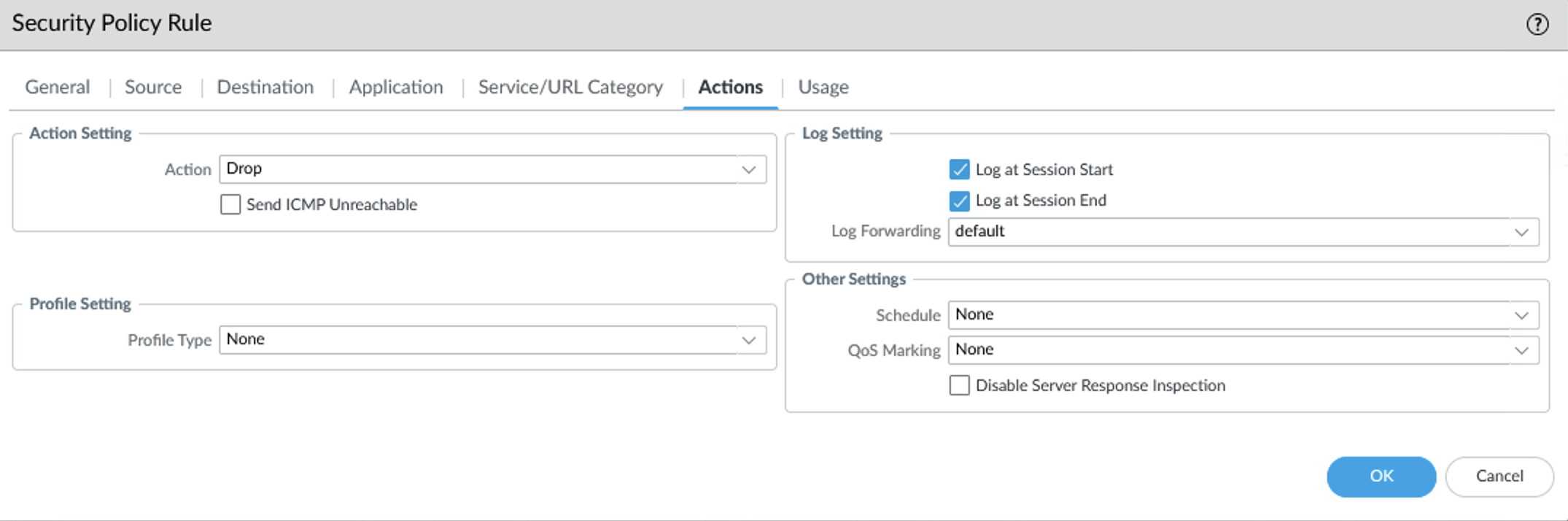

In the Actions tab, select Drop and enable logging (recommended).

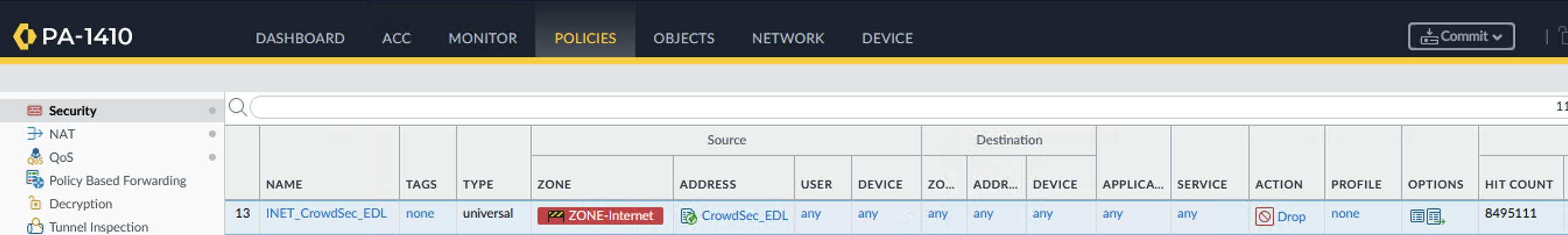

Click Commit to apply the configuration.

Manage integration size limits with pagination​

If you want to learn how to manage integration size limits with pagination, please refer to the Managing integrations size limits with pagination section.

References​

Next Steps​

Subscribe to blocklists in the Blocklist Catalog to populate your integration.
